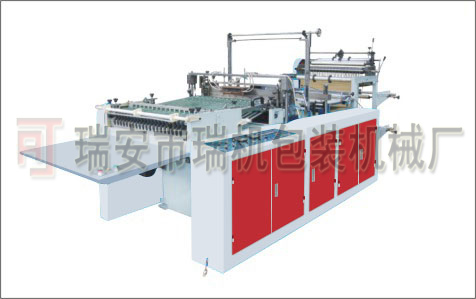

Use:
This machine is suitable for making high-low pressure vest bag, bag, bag, arc type duck food bags, flat pocket, disposable medical packing bag ( garment bags, shoes bags ) bags for sanitary napkins, ( production arc type bag as long as the device can)
Characteristics :
1.the machine adopts the microcomputer control, step motor to pull material. ( optional servo motor control system).
2.arbitrary fixed-length, accurate, stable step photoelectric tracking, stopping automatically when the label, lost, photoelectric control feeding.
3.automatic counting and can set the counting alarm.
4.automatic constant temperature makes the mouth sealing solid, flat.
Production process:
1 automated feeding - Import - Hot - forming cutting
Main Technical Variables:
Model |
500mm |
600mm |
Max.Bag-making Width |
450 |
550 |
Cutting Width |
1000mm |
1000mm |
Production Capacity |
30-80pcs/min |
30-80pcs/min |
Total Power |
4.5kw |
4.5kw |
Weight of Machine |
800kg |
900kg |
Overall Dimensions |
3300×1050×1500mm |
3300×1150×1500mm |
