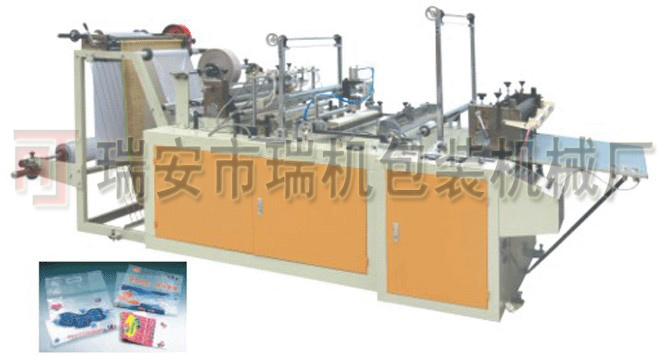

FQS-Computer double step type automatic toilet paper packaging bag making machine
DATA:2012-09-04

Performance and Characteristics

1 the machine applies to PE, PVC color or color of cylindrical plastic film bag sealing cutting. Such as diapers, diaper packaging bags and other enhanced and general packaging bag.

2 toilet paper packaging bag making machine for the production of toilet paper, paper napkin, web, diaper bags and other packaging equipment.

3 may be conducted on this machine and welding plastic reinforcing sheet, a handle hole, the function such as red dotted line. You

4 toilet paper packaging bag making machine can be in the bag plus a piece of plastic with handle bearing capacity, and the computer through the three set of stepper motor or servo motor for control, can make the process for making PE film tension equal, without being stretched, seal tooth clear ( seal tooth is tooth and the full version of tooth sealing ), strong, sealing line appearance, can produce high-quality toilet paper packing bag.

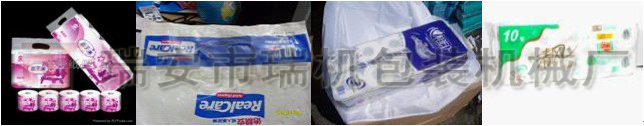

5 my company toilet paper packaging bag making machine production of packaging bags, widely used toilet paper brand:" heart of India"," cool breeze".

Main technical parameters

Model

500

600

Maximum bag width

450mm

550mm

Maximum bag length

3m

3m

Capacity

20—80/min

20—80/min

Bag thickness

0.02—0.15mm

0.02—0.15mm

Main motor

1.5kw

2.2kw

Heating power

3kw

3.5kw

Total power

5kw

6.5kw

Machine weight

1000kg

1200kg

Outline dimensions

3800×1200×1500mm

3800×1350×1500mm
