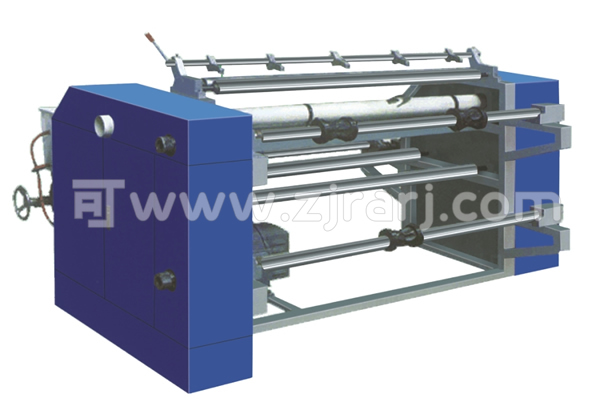

QFJ Series Common Film Slitter
DATA:2011-04-25

Use:


This machine is applied to slitting the materials like BOPP, PVC, etc.

The Function and Characteristic:

1.Simple construction, easy operation

2.Fast, stable, flat in slitting

3. auto fans discharge.

4.The water-cold radiator is adopted for the brake for feeder, fabrication sheet for the winder tension in winding. Magnetic powder brake and magnetic clutch optional

Main Technical Parameters:

Model

800

1100

1300

Max unwinding width

800

1100

1300

Max slitting speed

30-150

Max unwinding diamater

600

Max rewinding diamater

450

Motor total power

2.2

Weight

500

550

600

Overall dimension

1600×1300×1200

1900×1300×1200

2100×1300×1200
