Use:

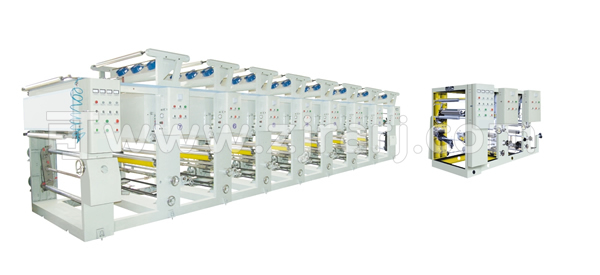

This machine is suitable for BOPP、PET、PVC、 PE、CPP and Rolling Paper Etc. With good printing performance of rolling material for multicolor continous printing.
Characteristic:
1.Printing colors: 1-13color
2.Printing color unit can be increased or decreased according to customer's requirement.
3.Unwind&Rewind are both double-armed dual working turret type.
4.Main motor adopts with frequency motor and inverter.
5.Unwind&Unwind traction adopt with magnet powder brakers.
6.Rewind&Rewind traction adopt with torque motors.
7.Temperature of electric-heating intelligently constant control.
8.Double passage drying design, making the printing drying fast.
9.Printing cylinder installation type: shaft type.
Main Technical Parameters:
Model(6-color 8 groups) |
600B |
800B |
1000B |
1200B |
Max.Printing width |
600 |
800 |
1000 |
1200 |
Diameter of Printing Cylinder |
100-320mm (特殊规格可定做设备) |
Diameter of Unwind&Rewind |
φ500 |
Printing Speed |
5-60 |
Register Precision |
≤0.15 |
Drying Method |
电加热 |
Machine Power |
44 |
46 |
48 |
52 |
Machine Weight |
6500 |
7000 |
7500 |
8000 |
Overall Dimension |
9200*1800*2300 |
9200*2000*2300 |
9200*2200*2300 |
9200*2400*2300 |
