Use:

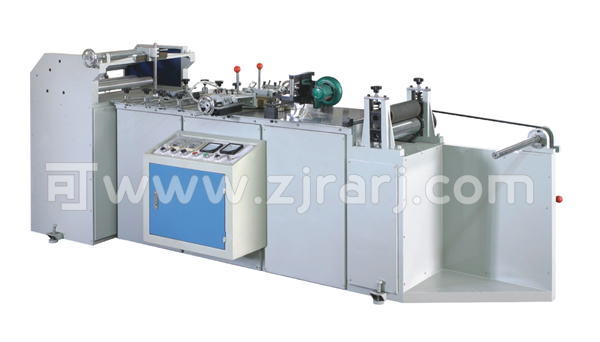

Middle-sealing Bag-making Machine, also called back sealing machine, one of the soft packing compounded bags equipments, is mainly applied to pressing hydraulically and sealing the middle lines. It is the choice equipment for processing packing bags for cold drinks, ice creams, ciscuits, nuts, tea, mineral water trade marks and detergents,
The Function and Characteristic:
1.The master frequency speed governor controls, making it run stably, fast, smoothly, saving more energy.
2.The middle-sealing system adopts high precision thermocontroller, making the sealing firm and beautiful.
3.The winder adopts rubber cylinder to tract, through which can adjust the tension for unwinding, having a proper tightness of the finished products
4.The winding and unwiding systems adopt xir expansion shaft and magnetic powder tension contoller.
5.An additional coater can be assembled. Liquid gel glues.
Main Technical Parameters:
|
Model |
250 |
300 |
|
Max substrate width |
500mm |
600mm |
|
Max rewinding speed |
60m/min |
60m/min |
|
Total power |
2.2Kw |
2.5Kw |
|
Weight |
500kg |
700kg |
|
Overall dimension |
2820×1050×1100mm |
2820×1200×1100mm |
