1. Use:

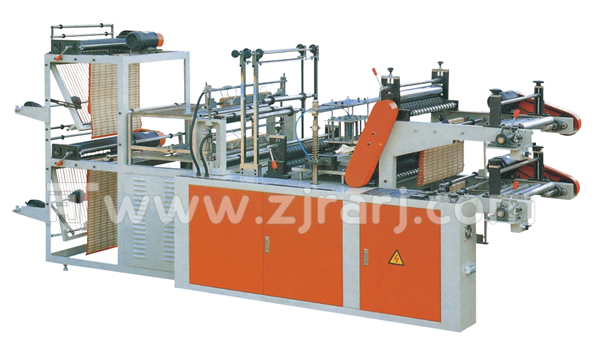

This machine is suitable for producing white bag, colored bag, flat bag, T-shirtbag as well as other plastic soft packing bags on roll.
2.Function:
1. Photoelectrical automatic follow, fix length with microcomputer
2. High limit stop
3. Automatic count, alarm once it reaches fixed number, with high compensation precision
4. Ordered bag, small error, and the whole machine with high automatization degree.
3.External dimension:
|
Model |
RLLB-500型 |
RLLB-800型 |
|
Max. width(mm) |
500 |
800 |
|
Max. cutting length(mm) |
1200 |
1200 |
|
Max.speed |
30～120 |
30～120 |
|
Thickness(mm) |
0.008～0.15 |
0.008～0.15 |
|
General power of motor(kw) |
4 |
4.5 |
|
Supply voltage |
220V/50Hz |
220V/50Hz |
|
External dimension(mm) |
3850×1300×1800 |
3850×1600×1800 |
