Characteristic:

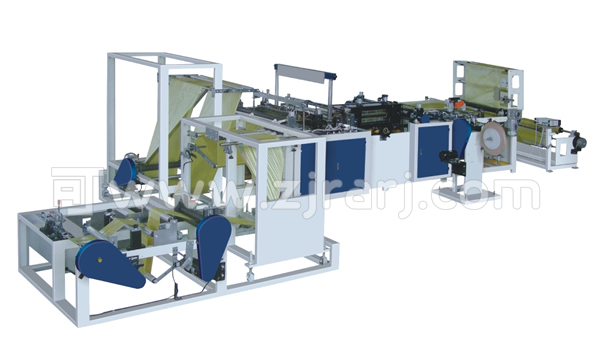

This equipment has been improved , designed and manufactured by our company ribbon-through reterring to foreign technology and is specially used for making ribbon-through type garbage bags or BOPP,PP, flat bags , etsc. of LDPE,HDPE plastic film and other materials. It adopts computer control, electric eye tracking, qutomatic temperature control, automatic counting and automatic alarm and meanwhile has such functions as edge folding, mouth cutting,punching and ribbon passing thtough,etc.With such characteristics as once-through operation, film and standard sealing and sealed edge and beautiful appearance,etc.The quipment also can produce continuous-rolled bags with special requirements and has such functions as multi-foding and spot breaking.So it is a kind of ideal supporting equipment for bag making machine.
Main Technical Parameters:
|
型号 |
Model |
1000型 |
1200型 |
|
制袋宽度 |
Width of Bag-making |
≤780mm |
≤780mm |
|
制袋长度 |
Length of Bag-making |
≤950mm |
≤1100mm |
|
薄膜厚度 |
Thickness of film |
0.01～0.05mm |
0.01～0.05mm |
|
制袋速度 |
Speed of Bag-making |
15～50pcs/min |
15～50pcs/min |
|
电源 |
Power supply |
380V |
380V |
|
总功率 |
Total power |
8kw |
8kw |
|
正常工作 |
Normal working |
4kw |
6kw |
|
机器重量 |
Weight of machine |
1200kg |
1500kg |
|
外型尺寸(长×宽×高) |
Overall dimension |
6300×2200×1950mm |
6300×2400×1950mm |
|
