PE Zipper Slider Bag
DATA:2014-03-08

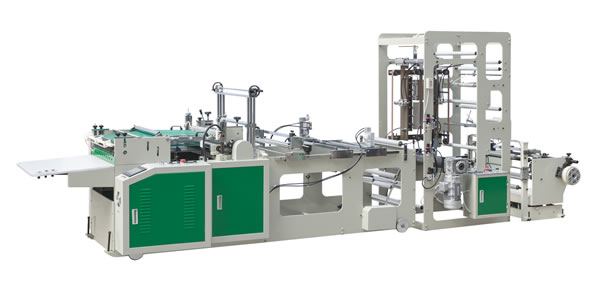

PE Zipper Slider Bag

Use:



This machine is suitable for making zipper bag.



Material:
LDPE、PP、OPP、BOPP、EVA, etc.



The Function and Characteristic:

1. PLC control, servo motor control film feeding.

2. EPC, side cutting, Zipper sealing,Ultrasonic pressing

3. Auto counting and auto giving an alarm. Also could set auto stop working.

4. Accurate and stable photocell tracking, air puncher.


Specification

MODEL

RFQJ-600

RFQJ-800

Material

LDPE-PP-Nonwoven

LDPE-PP-Nonwoven

Speed

20-50Cycle/min

20-50Cycle/min

length

120-550mm

120-750mm

Weigth

100-500mm

120-750mm

thickness

0.04-0.15mm

0.04-0.15mm

Servo motor

1.5kw

2kw

Main motor

1.5kw

1.5kw

Heat power

3kw

3.5kw

Out bag DC motor

0.4kw

0.4kw

Ultrasonic

1set

1set

Feeding DC motor

0.55kw

0.75kw

Total power

15kw

17kw

Overall dimensions(L×W×H)

6500x1300x1800mm

7500*1600*1800mm

Power

50hz220v

50hz220v
