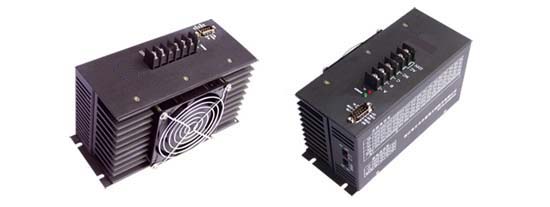

MD308 series Motor Driver

1. Description:

    MD3XXS (XX represents the output maximum current) drive, driving three-phase hybrid stepping motor, the drive is using imported MTSUBISHI modules to achieve high-frequency chopper, constant current driver, with a strong anti-interference; control signals and internal signals to achieve optical isolation, with over-current, over voltage, overheating and a series of self-protection function, smooth operation, reliability, and drive all of the following 8A 110BYG, 130BYG series of three-phase hybrid stepping motor.

2. Technical Parameters
AC220V power supply
Maximum drive current of each phase with the motor according to the configuration.
AC servo motor current control, accurate current output, so that the stepper motor is running close to AC servo motor performance.
Motor drive performance dependent on small, different parameters of the motor can achieve excellent performance.
With a variety of sub-models, the special subdivision requirements can be customized.
Semi-automatically when the current is still locked, the signal optical isolation.
Adaptive motor: 110BYG, 130BYG series stepper motor.

Parameters placed on housing, DIP switch settings, easy commissioning and maintenance.
Operating temperature: 0 ~ 45oC Operating humidity: 10 ~ 85%; protection of the environment temperature: 20 ~ 70oC to protect the environment humidity: 10 ~ 90%
