PE CPE Shoe Cover Making Machine
DATA:2012-09-12

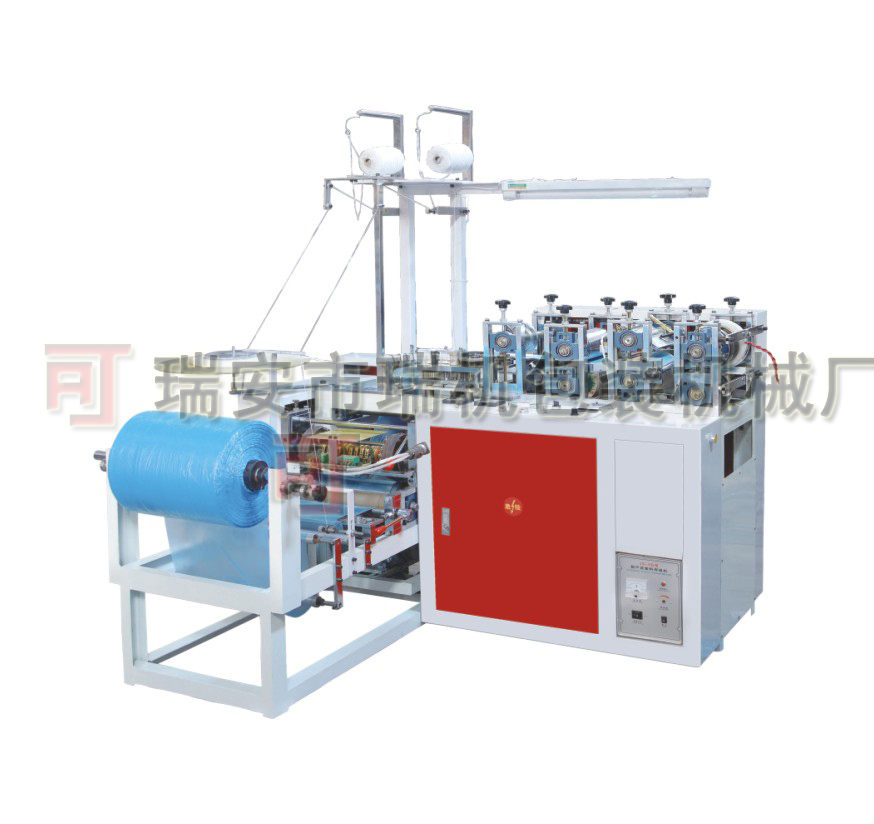

Model-PECPE Shoe Cover Making Machine



Features:

1.Button control, English and Chinese interface, push button panel, easy to learn;

2.Frequency converter control, accurate operation;

3.The heat sealing technology and combining ultrasound, electric wheel ( stop separation, boot closure ), welding firm;

4.Full set of high quality components assembly, stable performance;

5.independent research and development design, quality guaranteed, production yield is high, quality is good,cost savings and efficiency.

6. Electric wheel automatic clutch ( when the machine is stopped, it will be separated, when the machine start to operate, it will be closed ). And the machine will automatically stop when out of material.

7.Machine possess exquisite appearance, high ratio of performance.

Characteristics:

1. Ultrasonic welding PE shoe cover firmly;

2. Shoe cover Surface is very smooth smooth, no burning;

3. Raw material can be automatically feed.

4. Dimensions: product size can be changed according to the different requirements of customers.

5. Rubber band : the product uses the single round rubber band;

6. Struture: heat and ultrasonic seamless welding technology combined with simple and convenient operation;

7. Products: ultrasonic welding and cutting edge, no edges fraying, and the finished appearance is neat and beautiful.

8.speed can be adjusted according to customers' need.

Technical Parameters:



Mechanical model

Model-PECPE

Machine size

1560mm*1500mm*1750mm (L*W*H)

Common size to be packed in wooden cases

1650mm*1550mm*1300mm (L*W*H)

production

120-150 / minutes (the most suitable speed) 180 / minutes some customers can also open up

voltage

220v/380v(according to the requirements of our customers)

Power consumption

3.5kw

Net weight

445kg

gross

625kg

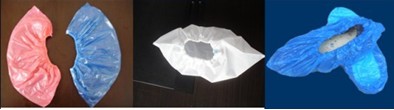

Finished product size

400mm L*(140-160)mm W the rest of the model can be customized according to client's requirement
