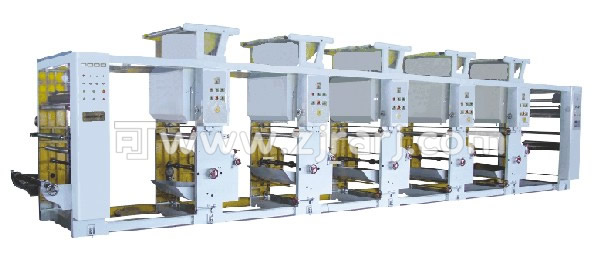

ASY-B Couplet Printing machine
Usage:
This machine is specialize for printing couplet.
Feature:
1.Printing colors: 5 (Max.printing colors: 13 ).
2.Printing color unit can be increased or decreased according to ustomer's requirement.
3.Main motor adopts with magnet speed adjust motor.
4.Unwind&Unwind traction adopt with magnet powder brakers.
5.Rewind&Rewind traction adopt with torque motors.
6.Temperature of electric-heating intelligently constant control.
7.Double passage drying design, making the printing drying fast.
8.Printing cylinder installation type: shaft type.
Main technical parameter:
Max.Printing Width |
600-1200mm |
Max.Printing Length |
250-800mm |
Max.Printing Speed |
10-60m/min |
Register precision |
0.06-0.2mm |
Blower power |
0.12kw/unit |
Electric-heating power |
3.6kw/unit |
Total power |
18kw |
Printing pressure structure |
Pneumatic Linear guide |
Machine weight |
4500kg,5500kg,6000kg,7000kg |
Overall dimension |
108000×2100×2400mm(800mm model) | |
