Use:

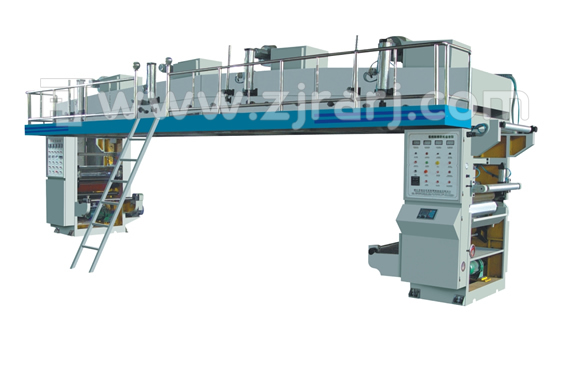

The machine is applied to compounding the drum-type films like BOPP, PET, CPE, CPP, nylon, paper, Al foil in two-layer or multi-layer manner.
The Function and Characteristic:
1.The complete machine employs double frequency converter technology, which assures it in running synchronically.
2.The first base material employs the rectifier and unreeling device for auto double photoelectric tracking.
3.Two sets of auto tension control system control the front and back unreeling tension respectively.
4.The pneumatic back-press movable doctor is gluing in coordinating with the mesh roller.
5.With adjustable pressure, the gluing and compounding manners employ the pneumatic pressuring.
6.The internal heating via heating guiding in the master cylinder enables the heat drum to heat evenly and to save power in heating as well.
7.The temperature is automatically controllable in the four-section drying oven, the hot wind recycling system can have the wind recycle in processing, which enables it to save energy in processing.
8.The pneumatic topping-type drying oven cover and the film-crossing worktable are of safety and ease of in operation.
Model |
GD-600K |
GD-800K |
GD-1000K |
GD-1200K |
Laminating Layers |
2 |
Max.Laminating Width |
620 |
820 |
1020 |
1220 |
Mechnical Speed |
130 |
Laminating Speed |
10-120 |
Max.Diameter of Unwind |
650 |
Max.Diameter of Rewind |
650 |
Oven Temperature |
110 |
Machine Total Power |
38 |
40 |
42 |
52 |
Machine Weight |
4000 |
4500 |
5000 |
5500 |
Overall Dimension |
9000x1530x3200 |
9000x1730x3200 |
9000x1930x3200 |
9000x2130x3200 |
