Use:

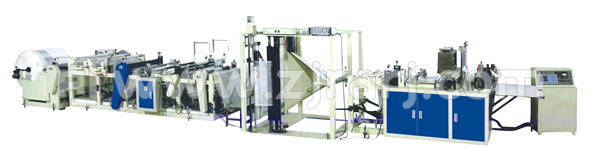

It is applied to producing profile bags like non-woven bags, quilt bags, gift bags, flat port bags, etc.
The Function and Characteristic:
1.Computer LD displayer, auto counter, alarm
2.The computer controls the two step motor in feeding, featuring in stable performance in feeding, free length fixing, photoelectric cells, auto stop at code absence.
3.The verifier feeds.
4.The folder is assembled with integral verifier.
5.Master motor with frequency speed governor
6.Altrasonic side-rolling device can firm the products in sealing.
7.Cut-off with cold tools, accurate cutting line and beautiful outlook
8.Auto punch the test bags (auto punch optional)
Main Technical Parameters:
Model |
500 |
700 |
Max Bag-making length |
800mm |
800mm |
Max Bag-making width |
450mm |
650mm |
Bag-making speed |
50-100pcs/min |
50-100pcs/min |
Bag-making thickness |
30-70g |
30-70g |
Total power |
10kw |
12kw |
Weight of whole machine |
1000kg |
1150kg |
Overall dimension |
6000×1100×1800mm |
6000×1300×1900mm |
