RFQQ Series Bubble Film Making Machine
DATA:2011-04-25

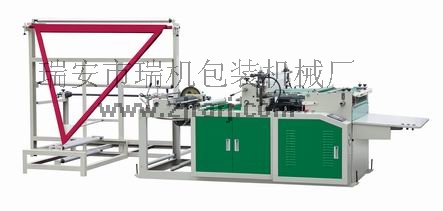

气泡膜制袋机 详细.jpg

Use:

The machine is used for making plastic film packing bags with the material of polyethylene film, compound pearl cotton for hardware, electric products and small electric appliances.


The Function and Characteristic:

1. The microcomputer control, step motor for film feeding

2. Automatic counter, count alarm.

3. Folding and bag forming in one machine.

4. One pc of triangle unwinding shelf.

5. Option: a. EPC  b.One pc of triangle unwinding shelf. c. Bottom sealing facility and the shelf.

Main Technical Parameters:

Model

Length of finished product (mm)

Width of finished product (mm)

Bag-making speed (pcs/min)

Total power (kw)

Weight (kg)

Overtall dimension (mm)

H

W

H

RFQQ-600

80-550

80-500

20-120

3.5

700

4800

1800

1450

RFQQ-700

80-650

80-600

20-120

3.75

850

4800

1900

1450

RFQQ-800

150-750

80-700

20-120

4.0

900

5000

2000

1500

RFQQ-900

150-850

100-800

20-120

4.5

950

5000

2100

1600

RFQQ-1000

150-950

100-900

20-120

5.5

1000

5500

2200

1700

RFQQ-1100

300-1050

100-1000

20-120

5.5

1050

5500

2300

1700

RFQQ-1200

300-1150

100-1100

20-120

6.0

1150

5500

24000

1700

RFQQ-1300

300-1250

150-1200

20-120

6.0

1200

5500

2500

1700

RFQQ-1400

300-1350

150-1300

20-120

6.0

1250

5500

2600

1700

RFQQ-1500

300-1450

150-1400

20-120

7.0

1300

5500

2700

1700
